Die-Cast Aluminum vs Cast Aluminum — what exactly sets these two methods apart? Why does the manufacturing process affect machining, strength, and finish? Who should choose die casting, and who benefits more from traditional casting? When is each process most cost-effective, and how do these differences shape final product performance? In this article, I’ll address these key questions so you can make the right choice for your project.

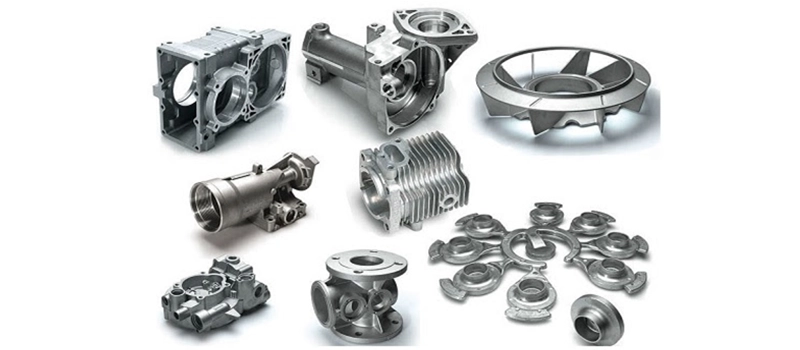

What Is Die-Cast Aluminum?
High-Pressure Casting Process
Die-cast aluminum is produced by injecting molten aluminum into a hardened steel mold under extremely high pressure. This method enables the rapid creation of complex parts with excellent dimensional accuracy, minimal variation, and smooth surfaces — all essential in high-volume manufacturing.
Steel Molds for Mass Production
The die casting process uses custom steel molds, known as dies. These molds are engineered to withstand the intense pressure and thermal cycles of each shot, allowing them to produce large quantities of parts with consistent results. While the upfront cost of a die is high, the per-piece cost becomes very economical when volumes exceed several thousand units.
Specialized Aluminum Alloys
Unlike sand casting or gravity casting, die casting requires aluminum alloys developed specifically for high-pressure processes. Common choices include A380 and ADC12, which provide an excellent balance of fluidity, mechanical strength, and corrosion resistance. These alloys fill molds efficiently, resist shrinkage, and maintain reliable performance across a wide range of applications.
Complex Geometries and Thin Walls
One of the greatest advantages of die-cast aluminum is its ability to support complex designs. Thin-walled sections, sharp corners, internal ribs, and intricate surface textures are achievable without extensive secondary operations. High-speed injection ensures that even fine details are captured precisely.
Machining Considerations
Due to the dense skin and high hardness of die-cast aluminum, machining can be more demanding compared to cast aluminum. Machinists must account for increased tool wear, hardness variation, and heat buildup. Precision tooling, proper coolant use, and controlled cutting parameters are essential for efficient post-processing.
Typical Applications
Die-cast aluminum is widely used in industries where consistency, performance, and scale matter. Common applications include:
- Automotive components
- Industrial enclosures
- Electronic housings
- Appliance frames

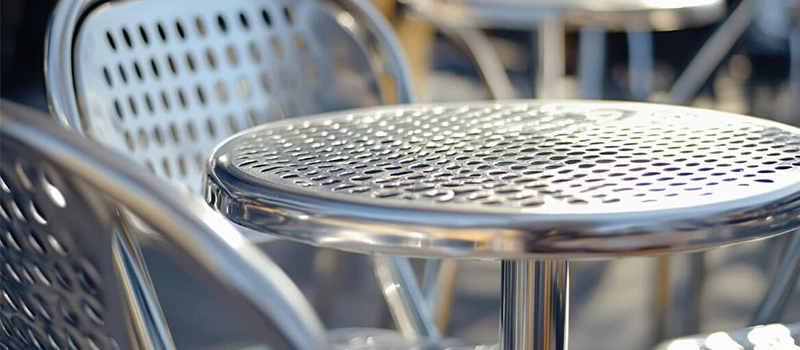

What Is Cast Aluminum?
Traditional Casting Methods
Cast aluminum refers to aluminum components made through traditional methods such as sand casting, permanent mold casting, or gravity casting. Unlike die casting, these methods rely on gravity or low pressure to fill the mold cavity. The molds are typically made from sand, graphite, or ceramic, and they can be disposable or semi-permanent depending on the production needs.
Step-by-Step Casting Process
The process begins by heating aluminum until it becomes liquid. The molten metal is then poured into the mold cavity, where it gradually cools and solidifies. Once the part has hardened, the mold is either broken or opened to release the finished component. While slower than die casting, this approach provides greater flexibility in mold design and is suitable for much larger parts that cannot be produced under high pressure.
Advantages in Prototyping and Low Volume Runs
Cast aluminum is particularly well-suited for components with large cross-sections, simple geometries, or limited production runs. It is more economical for prototypes and small batches, as sand molds are inexpensive and easy to adjust. Design changes can be implemented quickly without the need for costly tooling.
Alloys Commonly Used in Cast Aluminum
Cast aluminum often employs alloys like A356 or AlSi12, which are optimized for low-pressure casting. These alloys offer excellent weldability and corrosion resistance, though they typically have a coarser grain structure than die-cast alloys. The benefit is that they are easier to machine and place less stress on cutting tools, making them practical for post-processing.
Surface Finish and Dimensional Accuracy
Compared to die-cast parts, cast aluminum components generally have a rougher surface texture and lower dimensional accuracy. However, they are much more forgiving in secondary processes. Operations such as welding, grinding, and coating are easier to perform, giving fabricators more flexibility to modify or repair components after casting.
Common Applications
Because of these characteristics, cast aluminum is widely used in:
- Cookware and bakeware
- Patio furniture and outdoor fixtures
- Garden equipment
- Low-volume industrial machinery components
Residual Stress and Post-Treatment Benefits
Another advantage is that cast aluminum typically has fewer residual stresses compared to die-cast aluminum. The absence of high-pressure injection makes these parts easier to heat treat, weld, and machine, especially when working with larger sections that require additional modifications after casting.

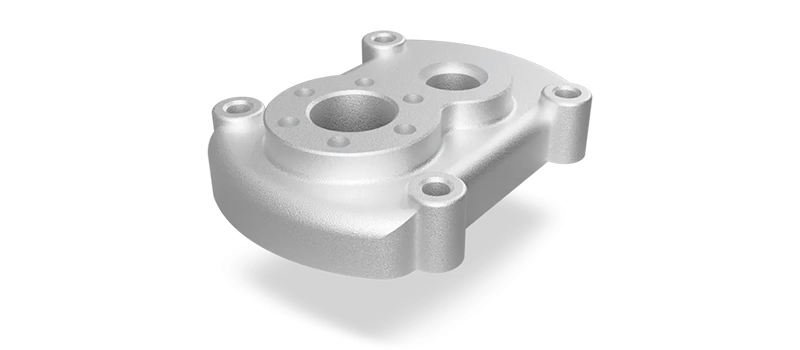

Die-Cast Aluminum vs Cast Aluminum: Manufacturing Process Comparison
How Molten Metal Enters the Mold
The most fundamental difference between die-cast aluminum vs cast aluminum lies in how the molten metal is introduced into the mold. This single step shapes the outcome of tooling cost, production speed, surface finish, and overall part performance.
High-Pressure Injection in Die Casting
In die casting, molten aluminum is injected into a hardened steel mold at pressures ranging from 1,500 to 25,000 psi. The injection is rapid and forceful, allowing the metal to fill narrow cavities and sharp geometries within seconds. Once solidified, the mold opens mechanically and ejects the part. Because the process is almost fully automated, cycle times are short and output is consistent, making it ideal for mass production.
Gravity and Low-Pressure Casting in Traditional Methods
By contrast, cast aluminum made through sand or gravity casting relies on gravity or low pressure to fill the mold cavity. The molten aluminum is poured into a pre-formed mold, often made of sand or ceramic. Without the assistance of high-pressure injection, the filling process is slower, allowing gases to escape more easily but also leaving a rougher surface and increasing the chance of incomplete fills if not carefully managed.
Mold Design and Reusability
Mold design represents another key difference. Die-casting molds are expensive to produce but extremely durable, capable of tens of thousands of cycles before replacement. This makes them suitable for high-volume runs of consistent parts. Traditional casting molds, however, are inexpensive and quick to fabricate. A sand mold, for example, is destroyed when the part is removed, limiting its use to low- or medium-volume production.
Cooling Time and Microstructure
Cooling also distinguishes the two processes. In die casting, the steel mold rapidly draws heat from the molten aluminum, resulting in a denser microstructure and stronger outer skin. However, this rapid solidification can trap gases, creating internal porosity. In contrast, cast aluminum cools more slowly, leading to a coarser grain structure. While this reduces surface quality, it makes the material easier to machine, weld, and heat treat.
Process Control and Repeatability
Finally, process control sets these two apart. Die casting is a highly controlled, repeatable process where every cycle produces nearly identical parts, an advantage for CNC machining workflows that depend on consistent tolerances. Traditional casting, while more flexible, introduces variability from mold to mold. Additional machining or finishing may be required to achieve tight dimensional specifications.

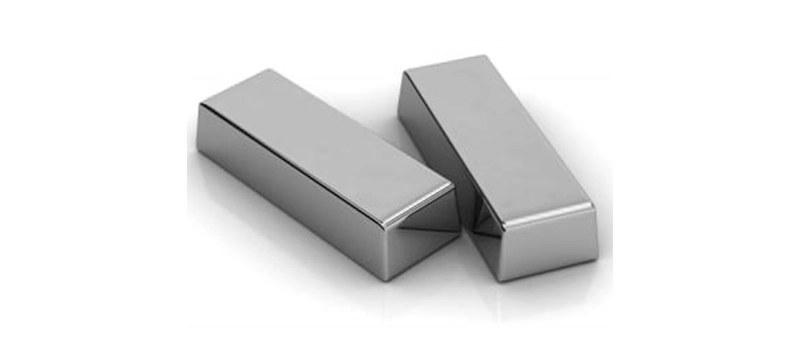

Die-Cast Aluminum vs Cast Aluminum: Material Strength and Durability
Why Strength Differs Between die-cast aluminum vs cast aluminum
When comparing die-cast aluminum vs cast aluminum, one of the biggest differences lies in their mechanical properties. How the molten metal cools, solidifies, and distributes inside the mold directly affects the final strength, toughness, and durability of the part.
Die-Cast Aluminum: Dense but Porous
Die-cast aluminum, formed under high-pressure injection, produces a dense outer skin with a fine-grained structure. This surface layer improves hardness and wear resistance. Because the metal cools quickly in steel dies, it locks into a compact grain orientation that strengthens thin-walled sections. The drawback, however, is porosity. Trapped gases inside the part can reduce internal strength and limit fatigue resistance in demanding applications.
Cast Aluminum: Coarser but Consistent
Traditional cast aluminum, produced by sand or gravity casting, cools at a slower rate. This slower cooling allows for larger grain growth and a coarser structure. While this results in a lower surface hardness compared to die-cast parts, the density is generally more uniform across the cross-section, with fewer residual stresses. This uniformity makes cast aluminum easier to weld, machine, and heat treat.
Application-Based Durability
Durability also depends on how the part will be used. Die-cast aluminum excels in precision components where stiffness and dimensional accuracy matter most — such as automotive housings, electronic enclosures, and structural frames. Cast aluminum is better for larger, rugged parts like cookware, patio furniture, and machinery bases, where crack resistance, repairability, and modification flexibility are more important.
Conclusion
Die-cast aluminum vs cast aluminum represent two different solutions to the same challenge: shaping molten metal into useful products. One offers speed, precision, and repeatability; the other offers flexibility, adaptability, and ease of post-processing. Understanding their main differences in machining, fabrication, and performance is the key to choosing the right casting method for your specific project.
