Are you unsure whether to use a tapped hole or threaded hole in your next metal component design? Frustrated by fitment issues, production delays, or inconsistent thread strength? Choosing between the two may seem minor — but in practice, this small decision can cause major complications if misunderstood.

In metal fabrication, tapped hole vs threaded hole isn’t just a terminology choice — it’s an engineering decision that affects cost, strength, assembly time, and long-term reliability. Misunderstanding the difference can lead to thread failure, expensive rework, or worse — total project disruption.

In this article, I’ll guide you through the essential differences between tapped and threaded holes, their specific applications, pros and cons, and how to select the right option for your project. Whether you’re designing cast parts, machined components, or assembling prototypes, this guide will give you the clarity you need.

What Is a Tapped Hole?

A tapped hole is a hole that contains internal threads cut directly into a solid material—most commonly metal. These threads are created to securely receive a fastener like a bolt or screw without needing a nut on the opposite side. Tapped holes are widely used in mechanical assemblies where space constraints, strength requirements, and precision are critical.

Creating a tapped hole involves a two-step process. First, a hole is drilled using a specific drill size suitable for the thread size you intend to cut. Then, a tap—a tool made from hardened steel—is used to cut or form the internal threads into the walls of the hole. This operation can be done manually or via automated CNC machines, depending on the complexity and volume of the parts being produced.

🔩 The Internal Thread Creation Process

There are three primary methods for creating tapped holes:

1. Manual Tapping – Performed with a handheld tap wrench. This method is slower and used primarily in prototyping or repair.
2. CNC Tapping – A high-speed, precise method for large-scale production. It ensures uniform thread depth, clean finishes, and higher repeatability.
3. Form Tapping (Thread Forming) – Instead of cutting material away, this method displaces the material to form threads. It’s used for ductile metals and results in stronger threads and no chips.

Each method has specific tooling, material, and application requirements. Manual tapping is more flexible but less consistent, while CNC and form tapping offer speed and precision for industrial use.

🧩 When Tapped Holes Are Used in Casting and Machining

In machined parts, tapped holes are often created after the surface is milled or shaped. These holes are usually deep, precisely located, and critical for final assembly.
In casting, tapped holes can be integrated into the design by leaving enough wall thickness and material in the casting for threads to be cut afterward. While you can’t tap directly into a casting mold, you can machine and tap the holes post-casting for structural connections.

Tapped holes are commonly used in:

• Engine blocks
• Gear housings
• Hydraulic components
• Heavy machinery

These applications require reliable threaded engagement in metal, without relying on additional components like washers or nuts.

A tapped hole might seem like a simple feature, but its proper implementation is a crucial factor in durability, safety, and assembly efficiency. From heavy-duty cast parts to precision-machined assemblies, tapped holes are a staple in modern metal manufacturing.

What Is a Threaded Hole?

While often used interchangeably with tapped holes, a threaded hole is a broader term that refers to any hole containing threads—internal or external—designed to accommodate a screw, bolt, or threaded insert. Unlike a tapped hole, which specifically refers to internal threads cut directly into the base material, threaded holes can be created in several different ways, not all of which involve traditional tapping.

The key difference is this: all tapped holes are threaded holes, but not all threaded holes are tapped holes.

🧠 Beyond Tapping: How Threaded Holes Are Created

Threaded holes can be formed using multiple techniques depending on the application, materials, and desired strength of the thread:

1. Thread Cutting – The most conventional method where material is removed using a tap. This is the same as creating a tapped hole.
2. Thread Rolling (or Form Tapping) – Instead of cutting, material is displaced to form the threads. This method produces stronger threads and is chip-free.
3. Thread Milling – A CNC process using a rotating cutter that spirals into the hole to create the thread. Ideal for larger holes or harder materials.
4. Thread Inserts – Devices like Helicoils, Keenserts, or rivnuts are inserted into oversized holes to create durable threads—often in soft metals like aluminum or magnesium.

Each method has its place in production, and engineers may select a specific type of threaded hole based on performance requirements, ease of maintenance, or material constraints.

🧩 Threaded Holes Without Traditional Tapping

In certain applications, a threaded hole doesn’t involve directly cutting threads into the part:

• Soft Materials: For aluminum, plastic, or composites, threaded inserts are used to prevent stripping.
• Sheet Metal or Thin Walls: Rivet nuts or self-clinching nuts are often inserted into thin materials where tapping isn’t feasible.
• Mass Production: In high-volume manufacturing, thread rolling or thread forming is preferred for its speed and strength.

These threaded holes offer repairability, modularity, and often better performance in vibration-prone environments.

🔧 Examples Where Threaded Holes Excel

• Electronics enclosures: Use thread inserts for repeated screw insertion without wear.
• Sheet metal parts: Utilize PEM nuts or rivnuts for creating robust threads in thin sections.
• Consumer products: Plastics often include molded-in inserts for strong, reusable threading.
• Aerospace and automotive parts: Rely on thread-formed or thread-milled holes for strength under load and fatigue resistance.

In short, a threaded hole is not limited to one method or material—it represents a family of solutions for introducing threads into a part. Whether formed by cutting, rolling, or inserting, these holes offer a versatile and customizable approach to fastening in metal manufacturing.

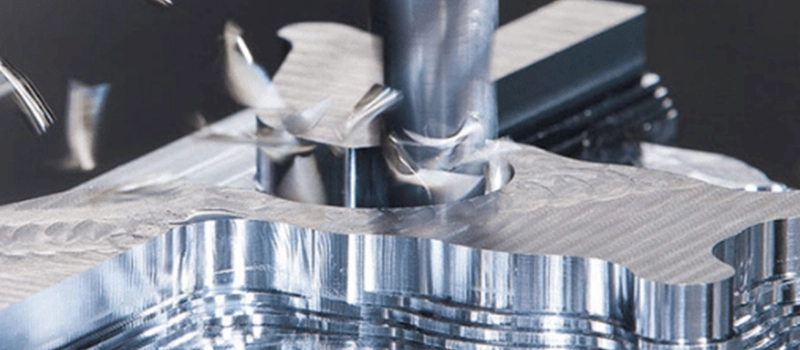

Tapped Hole vs Threaded Hole: Key Differences

While the terms tapped hole and threaded hole are sometimes used interchangeably, they are not technically the same. Choosing the wrong one can lead to design errors, assembly problems, and even product failure. Below is a detailed, head-to-head comparison that breaks down their manufacturing methods, performance, and practical considerations, helping you understand which one fits your application better.

🔨 How They Are Made

• Tapped Holes
  Created by cutting internal threads directly into a drilled hole using a tap. This is a subtractive process that removes material to form threads. Often used in solid metal components where strength and precision are needed.
• Threaded Holes
  Can be formed in various ways, not just tapping. Methods include thread rolling, thread milling, or adding thread inserts into a larger hole. Threaded holes may not involve cutting into the base material at all.

✅ Key takeaway: All tapped holes are threaded holes, but not all threaded holes are tapped.

🏗️ Structural Strength

• Tapped Holes
  Offer strong thread engagement, especially in thick-walled or dense materials. Ideal for high-load connections. However, the threads can wear or strip if over-tightened or used in soft materials.
• Threaded Holes
  Thread inserts (e.g., Helicoils) used in soft materials provide superior wear resistance and can handle repeated assembly cycles better. Thread rolling offers even higher thread strength than cutting.

✅ Key takeaway: Threaded holes using inserts or formed threads can outperform tapped threads in soft materials or high-cycle use.

💰 Cost Impact

• Tapped Holes
  Lower cost in low- to mid-volume production, especially when done manually or with CNC. No additional components required. However, tap breakage or rework increases cost risks.
• Threaded Holes
  May involve higher initial tooling costs (e.g., thread mills or inserts), but more cost-effective in high-volume production where faster cycle times and durability matter.

✅ Key takeaway: Tapped holes are cheaper for small runs; threaded holes are more cost-effective in high-volume or insert-heavy applications.

🎯 Precision and Tolerance

• Tapped Holes
  Require tight control during drilling and tapping to ensure alignment, pitch, and depth. Manual tapping introduces variability; CNC improves accuracy.
• Threaded Holes
  Thread milling offers superior precision and repeatability. Thread inserts can also help correct alignment or pitch issues in softer or misaligned holes.

✅ Key takeaway: Threaded holes (especially via thread milling or inserts) can achieve tighter tolerances and better repeatability than manual tapping.

📊 Summary Table: Tapped Hole vs Threaded Hole

Feature	Tapped Hole	Threaded Hole
Definition	Threads cut directly into the base material	Any hole that contains threads, by any method
Creation Method	Tapping with tool	Tapping, thread rolling, milling, inserts
Material Use	Best for thick, strong metals	Versatile; works in thin or soft materials
Strength	High strength in solid materials	Can be stronger with inserts or rolling
Cost	Lower for small volumes	Better for high-volume production
Precision	Moderate to high	High (especially with thread milling)
Maintenance	Threads can wear	Inserts can be replaced or reinforced

Choosing between a tapped hole vs threaded hole isn’t just about terminology — it’s about making the right call for your design, material, and production needs. The next two sections will dive deeper into when and where each type shines.

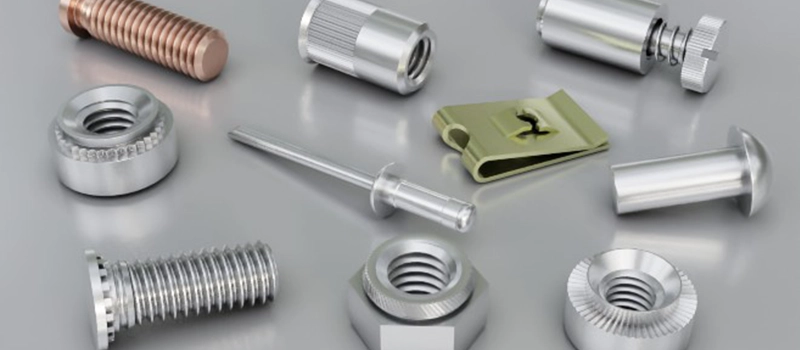

Applications of Tapped and Threaded Holes

Understanding where and why to use tapped holes versus threaded holes is essential for ensuring mechanical reliability, simplifying assembly, and optimizing production. While both serve the purpose of fastening components, they are each suited to different application scenarios depending on material, design constraints, and intended use.

🔩 Tapped Hole Applications: Precision and Load-Bearing Use

Tapped holes are most commonly used when:

• Space is limited and access to the back of the part isn’t available.
• The material is thick and strong enough to hold internal threads.
• The fastener must be firmly anchored into the base component.
• High strength or load resistance is required.

🛠️ Typical Use Cases:

• Engine blocks
• Valve bodies
• Gear housings
• Mold bases
• Robotic arms and servo brackets

These holes are cut directly into the base material, often during machining or post-casting, making them highly suited for dense, high-precision assemblies.

🔧 Threaded Hole Applications: Versatility and Modularity

Threaded holes, particularly those using inserts or formed threads, are ideal when:

• Material is too soft (like aluminum or plastic) to be tapped reliably.
• The product requires frequent disassembly or repair.
• Threads need to be reinforced or replaced over time.
• Assembly involves thin materials like sheet metal.

🛠️ Typical Use Cases:

• Electronics enclosures with thread inserts
• Sheet metal structures using rivet nuts or PEM nuts
• Repairable consumer products
• Aerospace parts requiring modularity
• Lightweight machinery

Threaded holes offer greater flexibility, and by using inserts, they also provide improved wear resistance and better fatigue performance in repeat-use environments.

In short, choose tapped holes when strength, permanence, and compact design are your priorities. Opt for threaded holes when you need repairability, compatibility with soft materials, or custom assembly options.

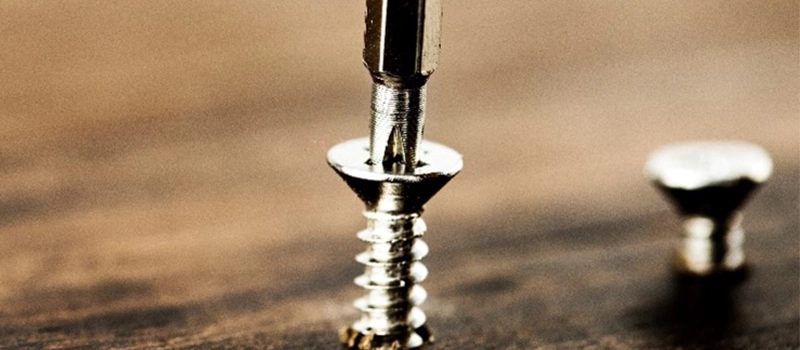

Pros and Cons of Tapped Holes vs Threaded Holes

Choosing between a tapped hole and a threaded hole depends not just on how they’re made, but also on their real-world performance, maintenance needs, and suitability for different production volumes. Both have strengths and weaknesses depending on the design environment, materials, and usage conditions.

✅ Tapped Holes – Advantages

• High Strength: Threads are cut directly into solid material, ideal for holding high loads.
• Compact Design: No need for nuts, saving space in tight assemblies.
• Cost-Effective for Low/Medium Volumes: Especially when done manually or on simple CNC setups.
• Clean Aesthetic and Assembly: No protruding parts, ideal for enclosed or finished surfaces.

⚠️ Tapped Holes – Disadvantages

• Tap Breakage Risk: In hard materials or deep holes, taps can break and delay production.
• Difficult to Repair: Stripped threads may require costly rework or thread inserts.
• Access Limitation: Requires access from only one side—if you need to fasten from the other, you’re out of luck.
• Not Ideal for Soft Materials: Threads may strip easily in aluminum or plastic.

✅ Threaded Holes – Advantages

• Versatile and Repairable: Use of thread inserts makes repairs and replacements easier.
• Ideal for Soft or Thin Materials: Inserts or rolled threads prevent stripping.
• Insert-Compatible: Choose from Helicoils, Keenserts, PEM nuts, etc., based on load and environment.
• Flexible Design Options: Threaded holes can be adapted to multiple screw types and tolerances.

⚠️ Threaded Holes – Disadvantages

• Higher Initial Cost: Inserts, thread rolling, and precision milling tools can be expensive.
• Installation Complexity: Threaded inserts require precise installation to avoid misalignment.
• Less Strength in Poorly Supported Areas: Especially in thin-walled parts or improperly installed inserts.
• Tolerances Must Be Perfect: Mismatched threads or poorly formed threads can lead to functional failure.

🔍 When to Choose Each One

Scenario	Best Choice
High-strength application in thick material	Tapped Hole
Soft material like aluminum or plastic	Threaded Hole + Insert
Frequent disassembly or service needed	Threaded Hole
Minimal space, permanent installation	Tapped Hole
Thin-walled parts (e.g., sheet metal)	Threaded Hole
Low-cost, low-volume prototype	Tapped Hole
Aerospace or modular mechanical systems	Threaded Hole

In summary, tapped holes are simple, strong, and effective—especially in robust materials. Meanwhile, threaded holes offer flexibility and repairability where conditions demand it. Understanding these trade-offs is key to selecting the right approach for your design.

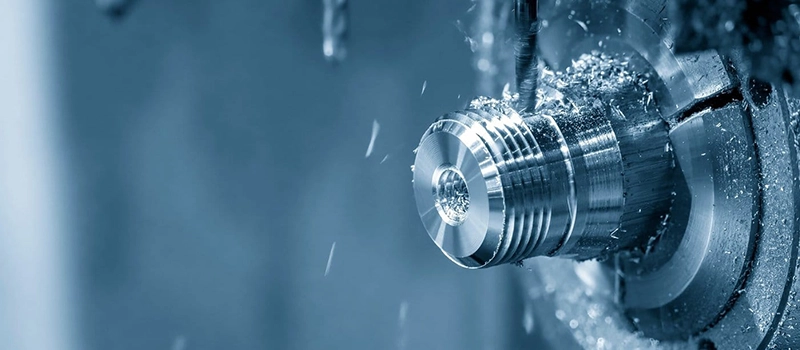

Choosing the Right Hole Type for Your Project

Selecting between a tapped hole and a threaded hole is not just a technical decision — it’s a strategic one that impacts cost, production efficiency, assembly performance, and long-term durability. Making the wrong choice can lead to rework, delays, and even structural failure. That’s why it’s critical to evaluate your design requirements from every angle.

🧱 Key Factors to Consider

Here’s how to approach the decision practically:

1. Material Type
   • If you’re working with hard metals like steel or cast iron, tapped holes are often sufficient.
   • For soft materials like aluminum, magnesium, or plastic, use threaded inserts to prevent stripping.
2. Wall Thickness
   • Tapped holes require enough material around them to create full thread depth.
   • If your design uses thin-walled or sheet metal parts, choose threaded holes with PEM nuts, rivnuts, or other insert-based solutions.
3. Load Requirements
   • High mechanical stress? Choose tapped holes in thick material or thread-rolled holes for extra strength.
   • For moderate loads, threaded holes with inserts are more than adequate — and easier to service later.
4. Assembly and Disassembly Frequency
   • If your part will be assembled once and left alone, tapped holes are simpler and cost-effective.
   • If it requires regular maintenance, go with threaded holes — inserts hold up better over time.
5. Production Volume
   • Low-volume or prototype production? Manual or CNC-tapped holes are fast and budget-friendly.
   • For high-volume production, thread milling or rolling is faster, and inserts speed up assembly.
6. Access Points in Your Design
   • Tapped holes are perfect when only one side is accessible.
   • If both sides are open and space allows, a through-hole with a nut might even be more practical.

📉 Common Mistakes We See in Technical Drawings

As a metal parts manufacturer, I often review customer drawings and see preventable issues like:

• Over-tapped holes in thin material, leading to stripped threads.
• No clearance for tap tools in blind holes.
• Inserts specified inappropriately for load-bearing joints.
• Thread types or pitches not standardized, which complicates tooling.

By catching these early, we help engineers avoid downstream delays and cost overruns. A simple design review can save days—or even weeks—of rework time.

🤝 How We Support Engineers and Buyers

At our factory, we assist customers in:

• Selecting the right hole type based on 3D models and load data.
• Converting tapped hole designs to insert-compatible threaded holes for better field serviceability.
• Optimizing CNC programs to reduce tapping cycle time without sacrificing quality.

Whether you’re producing castings, machined parts, or sheet metal assemblies, we ensure your hole design is not just technically correct—but optimized for real-world production and performance.

🧠 Final Tip

If you’re unsure, always ask yourself:

“Will this hole need to withstand high torque, frequent service, or sit in a soft material?”

That one question can often guide you to the right choice — tapped or threaded.

With all this information in hand, you’re now equipped to confidently select the right hole type for your next metal fabrication project.

Conclusion

Choosing between a tapped hole and a threaded hole may seem minor, but it can have a major impact on your part’s strength, assembly, and serviceability. By understanding their differences, applications, and design considerations, you can make better engineering decisions—and avoid costly mistakes in manufacturing.
