What Is a Mould Temperature Controller?
A mould temperature controller (MTC) is a precision device used in casting and injection moulding processes to maintain the mould at a consistent temperature throughout production. It works by circulating a thermal fluid—typically water or oil—through internal channels in the mould, ensuring the optimal temperature for material flow and cooling.
Without stable mould temperatures, casting defects such as warping, incomplete filling, or dimensional instability are far more likely to occur. An MTC helps manufacturers ensure tighter tolerances, improved product consistency, and faster cycle times.
Whether used in metal or plastic moulding, a reliable temperature controller is essential for high-efficiency, defect-free production.
Example Use Case
Imagine a die-casting mould used to produce aluminum gear housings. Without a temperature controller, each cycle would start at a slightly different temperature due to residual heat or ambient variations. The result? Uneven solidification, dimensional inaccuracies, and more scrap.
By introducing a water-based MTC set to 120°C, the mould reaches the optimal temperature within minutes and maintains it consistently for hundreds of cycles. Defects are reduced, and productivity increases.

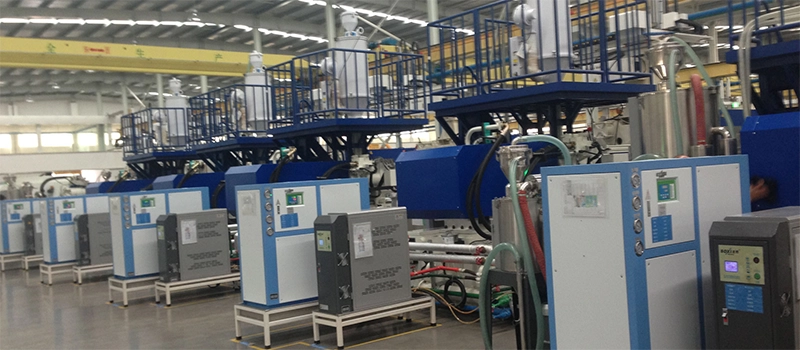

Why Mould Temperature Control Is Crucial in Casting
Consistent mould temperature is fundamental to achieving high-quality casting results. During the casting process, if the mould is too cold, molten metal may solidify prematurely, leading to incomplete fills, cold shuts, or flow marks.
On the other hand, if the mould is too hot, it can cause extended solidification time, excessive shrinkage, or thermal cracking. These thermal fluctuations are the root cause of many common casting defects.
A mould temperature controller ensures the mould stays within an ideal temperature range throughout the entire cycle, promoting even cooling and solidification.
🔥 The Role of Temperature in Casting
Molten metal begins to solidify the moment it touches the inner surface of the mould. If the mould is too cold, this can lead to:
- Cold shuts (where two flow fronts do not fuse properly)
- Misruns (incomplete fills)
- Surface roughness
- Poor material bonding
If the mould is too hot, problems like the following may arise:
- Excessive shrinkage
- Hot tears or cracks
- Porosity from trapped gases
- Longer cooling times and lower productivity
Without mould temperature control, every casting cycle is unpredictable—making high-volume or precision production virtually impossible.
⚠️ Common Defects Caused by Poor Temperature Control
| Defect | Cause | Impact |
|---|---|---|
| Cold shut | Mould too cold | Weak joints, leakage risk |
| Shrinkage cavity | Mould too hot | Dimensional error |
| Porosity | Thermal imbalance | Reduced mechanical strength |
| Surface warping | Inconsistent temps | Cosmetic and structural issues |
🎯 Why Stability Matters More Than Setpoint
While many focus on the temperature value itself, the key to quality is temperature stability. Fluctuations as small as ±5°C can cause:
- Variations in flow rate
- Uneven grain structures
- Stress concentrations in the casting
For example, in aluminum die casting, even a 10°C swing in mould temperature can change the viscosity of the molten metal enough to affect fill time and part density—especially in thin-walled designs.
🛠 Industry Use Case: Automotive Transmission Housing
An automotive supplier casting transmission housings without MTCs found that over 12% of units required rework due to porosity and dimensional deviation. After integrating a closed-loop oil-based MTC maintaining a stable 180°C mould temperature, defect rates dropped to under 2%, and overall productivity increased by 15%.
⚙️ Mould Wear & Cycle Efficiency
Fluctuating temperatures also lead to:
- Thermal shock in steel moulds, causing cracks and premature failure
- Slower cycle times due to longer, inconsistent cooling periods
- Increased maintenance from repeated heating/cooling stress
Mould temperature control reduces these stresses, extends tooling life, and ensures each part exits the mould under the same thermal conditions—every single time.
In short, precise and stable mould temperature control transforms your casting operation from a gamble into a controlled process. It’s the difference between high scrap rates and consistent quality, and the foundation of repeatable manufacturing in metal fabrication.
How Does a Mould Temperature Controller Work?
A mould temperature controller (MTC) works by managing the thermal balance of a mould in real time, using a closed-loop circulation system. This system automatically heats or cools a thermal medium—typically water or oil—and pumps it through internal channels inside the mould to maintain a precise, stable temperature throughout each production cycle.
🔧 Basic Working Principle
At the heart of the system is a temperature setpoint, which is entered into the controller based on the production requirements. The controller compares the actual mould temperature—measured by sensors—with this target value. If there’s any deviation, it adjusts the system accordingly to maintain thermal stability.
Here’s how the cycle works in five core stages:
✅ 1. Heating Phase
An electric heating element heats the fluid to the desired temperature. Oil is used for high-temperature applications (typically up to 300°C), while water is preferred for lower-temperature requirements (usually up to 180°C).
✅ 2. Circulation Phase
A powerful magnetic or gear pump circulates the heated fluid through the mould’s internal passageways. This ensures the entire mould reaches and maintains the same temperature, eliminating hot and cold spots that cause uneven cooling.
✅ 3. Temperature Sensing Phase
Thermocouples or RTD sensors detect the actual temperature of the return fluid or specific zones of the mould. These values are sent back to the digital controller for analysis.
✅ 4. Feedback & Control Phase (PID Regulation)
Using PID (Proportional-Integral-Derivative) algorithms, the controller calculates the exact amount of heating or cooling needed. It makes micro-adjustments in real time to ensure the temperature remains consistent—even under fluctuating production loads.
✅ 5. Cooling Phase
If the mould overheats, the system activates a cooling circuit. This can be done either by introducing cold water directly into the fluid loop, or by redirecting the fluid through a plate heat exchanger or chiller. Some systems even offer dual cooling for faster recovery during high-speed production.
⚙️ Additional Features in Modern MTCs
Advanced mould temperature controllers used in high-precision industries (like automotive, aerospace, and electronics) come with added features such as:
- Multi-zone control (for different sections of complex moulds)
- Touchscreen digital interface
- Remote monitoring via Ethernet/PLC
- Auto-alarm systems for overheating or pump failure
- Smart data logging and predictive maintenance features
🎯 Result: Thermal Stability = Product Consistency
This closed-loop control system ensures that each casting cycle starts under identical thermal conditions. The benefits are clear:
- Reduced defect rates
- Improved dimensional tolerance
- Enhanced part surface finish
- Consistent mechanical performance of final parts
In short, a mould temperature controller is like the “thermal brain” of the casting process—constantly thinking, sensing, and correcting to protect quality.

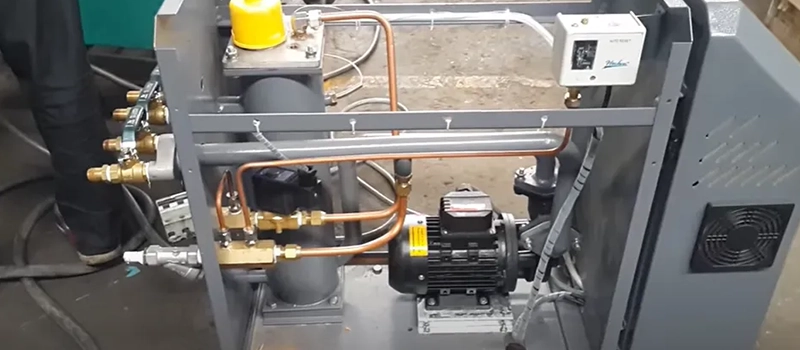

Benefits of Using Mould Temperature Controllers
Integrating a mould temperature controller into your casting line delivers measurable improvements in product quality, production speed, and operational efficiency. First and foremost, it minimizes casting defects such as warping, sink marks, internal stress, and inconsistent dimensions by maintaining a stable thermal environment.
With better temperature regulation, materials fill mould cavities more uniformly, resulting in smoother surface finishes and fewer rejections. Controlled mould temperatures significantly reduce cycle times by accelerating heating and cooling phases—critical for high-volume manufacturing.
Stable thermal conditions extend the lifespan of your moulds and machines by preventing thermal fatigue and reducing mechanical stress. From an economic perspective, all of this translates into lower scrap rates, reduced energy consumption, and improved ROI.
Applications in Different Industries
Mould temperature controllers are widely used across a range of industries where precision, consistency, and thermal control are critical to production quality.
In die casting, MTCs are indispensable for regulating the mould temperature when working with metals like aluminum, zinc, or magnesium—materials that are highly sensitive to temperature changes.
In injection moulding, both plastic and rubber components require carefully managed mould temperatures to avoid surface imperfections and dimensional instability.
The automotive industry relies heavily on temperature-controlled moulds for producing complex engine components, transmission housings, and structural parts with strict tolerance requirements. Similarly, in aerospace, temperature control is vital for casting lightweight but durable parts that must withstand extreme operational conditions.
The petrochemical sector uses MTCs for producing high-pressure valves, flanges, and fittings that require dense, defect-free castings. Even in construction and heavy equipment manufacturing, where large metal parts are cast, mould temperature control ensures uniform cooling and reduced internal stress.
Maintenance Tips & Troubleshooting
Like any precision equipment, a mould temperature controller requires regular maintenance to perform reliably and avoid costly downtime. Daily maintenance should include checking for fluid leaks, monitoring temperature readings, and verifying that circulation pumps are functioning properly.
Weekly routines might involve cleaning filters, inspecting hoses for cracks or blockages, and checking the integrity of electrical connections.
Monthly maintenance is especially important for water-based systems, as descaling is necessary to remove mineral buildup that can restrict flow and impair heat transfer. For oil-based systems, checking for signs of degradation or contamination in the heat transfer fluid is key.
Common issues include overheating, which may be caused by a clogged line or malfunctioning thermostat. Pump failure can often be traced to worn seals or debris. Sensor errors may signal thermocouple issues or loose wiring.
Establishing a preventive maintenance schedule not only extends the lifespan of the mould temperature controller but also ensures consistent production quality and minimizes unexpected breakdowns.
Conclusion
In metal casting, temperature precision is everything. A mould temperature controller ensures consistent quality, fewer defects, and faster cycles. For any factory aiming to improve efficiency and product reliability, it’s not just a helpful tool—it’s an essential investment in modern, competitive manufacturing.
