Chrome plating aluminum is one of the most effective ways to enhance both the durability and visual appeal of aluminum parts.

Aluminum is lightweight and cost-effective, but it’s naturally prone to corrosion, surface wear, and dull finishes—especially in high-friction or moisture-rich environments. Chrome plating solves these problems by adding a protective layer of chromium, which increases surface hardness, resists rust, and delivers a sleek, mirror-like finish that elevates both function and form.

Whether you’re restoring vintage car rims, producing industrial-grade aluminum components, or designing decorative metal trims, chrome plating aluminum helps achieve long-lasting results. In the automotive world, chrome plating aluminum wheels and valve covers not only improve performance but also create a high-end, polished look. Similarly, for cast aluminum parts used in construction or electronics, the hard chrome layer ensures reliability under stress.

If you’re looking for a method that combines surface protection with aesthetic brilliance, chrome plating aluminum offers unmatched benefits. In this guide, we’ll explore the complete process, real-world applications, and cost factors—giving you the knowledge to make smart, informed decisions for your next project.

1. What Is Chrome Plating Aluminum?

### 🔹 A Definition That Matters in Manufacturing

Chrome plating aluminum is a surface finishing process where a thin layer of chromium is electroplated onto aluminum components. This is done to achieve two main goals: enhance the corrosion resistance and improve the visual appearance of the base metal.

Unlike bare aluminum, which is relatively soft and reactive, chrome-plated aluminum has a high-gloss, mirror-like finish and greater surface hardness, making it suitable for demanding applications in automotive, aerospace, architecture, and electronics.

The process is performed using electroplating, in which the aluminum part is submerged in a plating solution and an electric current is used to deposit chromium onto the surface.

However, plating aluminum is not as straightforward as plating other metals like steel or copper. Due to the natural oxide layer on aluminum’s surface and its poor compatibility with chromium, the process requires extra preparation steps—namely, intermediate layers such as copper or nickel. Without these, the chrome layer won’t adhere properly and may peel off over time.

📌 In summary: Chrome plating aluminum is the art of turning reactive, dull aluminum into a durable, glossy, and high-performance material—but only when done correctly.

### 🔹 How Aluminum Differs from Steel in Plating

When it comes to surface finishing, aluminum and steel behave very differently during the chrome plating process. The key differences lie in chemical reactivity, surface preparation requirements, and layer compatibility.

⚙️ Electrochemical Reactivity

Aluminum rapidly forms a layer of aluminum oxide when exposed to air. This oxide layer interferes with plating adhesion and must be chemically removed or displaced during pre-treatment. Steel, on the other hand, is less reactive and can typically be chrome-plated without the need for intermediate steps.

⚙️ The Role of Intermediate Layers

To ensure strong adhesion, aluminum must be plated first with nickel or copper before chromium is added. These metals act as a “bridge” between the base aluminum and the final chrome coating. Steel usually does not require this step, making it a simpler substrate for plating.

Feature	Steel	Aluminum
Surface Oxidation	Low	High (forms oxide instantly)
Adhesion Complexity	Low (direct chrome possible)	High (requires underlayer)
Typical Pre-Treatment	Degreasing only	Zincate, nickel/copper strike required
Common Failures	Rare	Peeling, pitting, delamination

⚙️ Alloy Compatibility

Not all aluminum grades are suitable for chrome plating. Some high-silicon or cast aluminum alloys are difficult to plate due to porosity or internal impurities. 6000-series aluminum (e.g., 6061) tends to plate more reliably than cast aluminum or certain aerospace grades.

2. Key Benefits of Chrome Plating Aluminum

Chrome plating aluminum isn’t just about good looks — it’s about engineering performance, protecting value, and extending the life cycle of aluminum parts across industries. When applied correctly, chrome plating enhances both the mechanical properties and aesthetic finish of aluminum, making it ideal for functional and decorative applications alike.

### 🔹 Improved Corrosion Resistance

Aluminum by nature forms a passive oxide layer, but in many aggressive environments — such as coastal, industrial, or automotive — this layer is insufficient. Chrome plating provides a far superior barrier to:

• Moisture
• Salt spray
• Chemicals
• Oxidizing agents

The chromium layer acts as a non-porous shield that dramatically reduces oxidation and pitting. This makes chrome-plated aluminum ideal for outdoor structures, marine hardware, and under-the-hood components.

📌 Use case: Chrome plating aluminum wheels is popular because it prevents brake dust and road salt from eating into the alloy.

### 🔹 Increased Surface Hardness and Wear Resistance

Aluminum is lightweight but also relatively soft, making it vulnerable to dents, scratches, and abrasion. Hard chrome plating significantly increases surface hardness, achieving Rockwell hardness levels above HRC 65 in some cases.

This benefit is especially valuable for:

• Industrial equipment subject to friction
• High-performance automotive parts (like valve covers)
• Cast aluminum used in tools or dies

Hard chrome plating aluminum not only increases lifespan but also maintains tight tolerances in precision parts due to its controlled thickness.

### 🔹 Superior Aesthetic Appeal

One of the most obvious reasons for chrome plating aluminum is its mirror-like finish. The reflective, silvery appearance enhances the luxury appeal of products and provides a clean, high-end look.

Applications that prioritize appearance include:

• Automotive trim and grills
• Home fixtures and furniture hardware
• Motorcycle and bicycle parts

For industries that balance form and function, chrome plating offers a high-impact visual effect without compromising strength.

### 🔹 Additional Functional Benefits

Besides protection and appearance, chrome plating aluminum offers added engineering advantages depending on the application:

⚙️ Thermal Resistance

Chrome can withstand high operating temperatures, making it suitable for engine parts or heat sinks.

⚙️ Chemical Resistance

The surface becomes more resistant to oils, fuels, acids, and cleaning agents.

⚙️ Lubricity & Friction Reduction

In dynamic systems, chrome plating reduces wear from metal-on-metal contact, thanks to its low coefficient of friction.

These secondary benefits allow chrome plating to compete with — or even outperform — other finishes like anodizing or powder coating in specialized environments.

3. The Chrome Plating Process for Aluminum

Plating aluminum with chrome is not a simple “dip and done” process. It requires a precise, multi-stage procedure to overcome aluminum’s natural oxide layer and achieve a durable, high-quality finish. Without the proper steps — especially during surface preparation — the plating will fail, leading to peeling, bubbling, or weak adhesion.

Let’s break it down step-by-step.

### 🔹 Step 1 – Pre-Treatment and Cleaning

This is the most critical stage in the entire process. Aluminum cannot be chrome-plated successfully without thorough surface preparation.

⚙️ Degreasing

First, the part is immersed in an alkaline solution or solvent to remove oils, machining fluids, and fingerprints that would interfere with adhesion.

⚙️ Etching and Desmutting

Next, the aluminum undergoes a caustic etch to remove the natural oxide layer. This is followed by a desmutting process using acid-based solutions to eliminate residues caused by alloying elements like silicon or magnesium.

📌 Skipping this step will cause the chrome to flake off — especially in cast aluminum with high porosity.

⚙️ Zincate Treatment

Aluminum is immersed in a zincate solution to deposit a thin, conductive zinc layer. This layer prepares the surface to accept a more robust metal underlayer like nickel or copper.

🔧 Sometimes, a double zincate process is used for better bonding: strip the first zincate layer, then reapply a second, fresh one.

### 🔹 Step 2 – Intermediate Layer Application

Aluminum cannot be directly chrome-plated. A metallic underlayer is mandatory to promote adhesion and prevent chemical incompatibility between the aluminum and chromium.

⚙️ Nickel Strike or Copper Strike

After zincating, the part receives a thin strike layer of nickel or copper. These metals form a strong bond with both aluminum and the final chromium coating.

• Nickel underlayer is preferred for corrosion resistance and hardness
• Copper underlayer is used for leveling the surface and high reflectivity

Sometimes, both are used — copper for smoothing, followed by nickel for strength.

📌 Without this intermediate step, chromium will not adhere properly and the finish will fail prematurely.

### 🔹 Step 3 – Final Chromium Deposition

With the surface fully prepared and bonded to the underlayers, the aluminum part is finally ready for chrome plating.

⚙️ Electroplating Tank Setup

• The part is placed in a chromium plating bath containing chromic acid (CrO₃) and catalysts
• An electric current is applied to deposit chromium onto the surface

⚙️ Plating Time & Thickness

• Flash chrome plating aluminum applies a thin decorative layer (~0.1–0.25 microns)
• Hard chrome plating aluminum deposits thicker layers (up to 25+ microns) for mechanical wear protection

⚙️ Process Control

Parameters such as temperature, current density, and plating time must be closely monitored to ensure uniform thickness and prevent defects like burning or pitting.

In summary, chrome plating aluminum is a multi-step, high-precision process that relies heavily on proper cleaning, bonding layers, and plating control. When done right, the result is a flawless chrome finish that fuses strength with style.

4. Common Applications of Chrome Plated Aluminum

Chrome plating aluminum is widely used across industries where both appearance and performance matter. Its unique combination of lightweight structure, corrosion resistance, and reflective finish makes it ideal for components that must look good, endure friction, or survive exposure to harsh elements.

Here’s how various industries utilize chrome-plated aluminum to enhance function and add visual value.

### 🔹 Automotive and Motorcycle Parts

The automotive sector is one of the largest users of chrome-plated aluminum. This application goes far beyond aesthetics — though the shine is iconic.

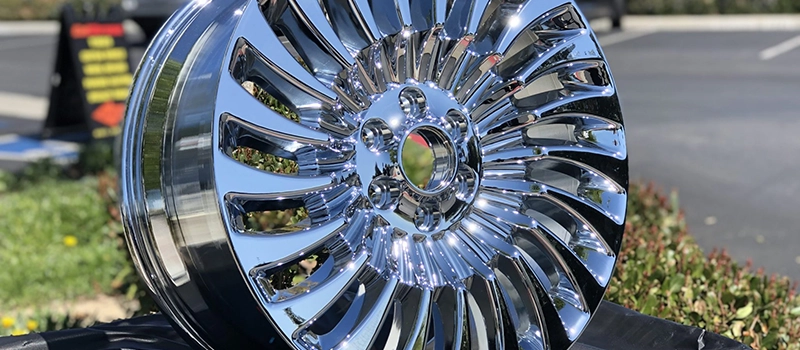

⚙️ Chrome Plating Aluminum Wheels and Rims

• Provides a long-lasting, showroom-quality finish
• Protects against brake dust, road salt, and moisture
• Easier to clean and maintain than bare aluminum

⚙️ Valve Covers and Engine Components

• Hard chrome plating adds wear resistance to engine parts
• Withstands heat and chemical exposure under the hood
• Also used on pulleys, brackets, and intake manifolds

⚙️ Exterior Trim and Emblems

• Trim strips, mirrors, and grills gain a mirror-like shine
• Black chrome plating on aluminum is popular in luxury lines

📌 Chrome plating aluminum valve covers ensures both function and presentation — ideal for performance enthusiasts and OEMs alike.

### 🔹 Architectural and Decorative Uses

Chrome plating aluminum is widely used in the home and commercial interior markets, where modern design calls for high-reflectivity, corrosion-resistant finishes.

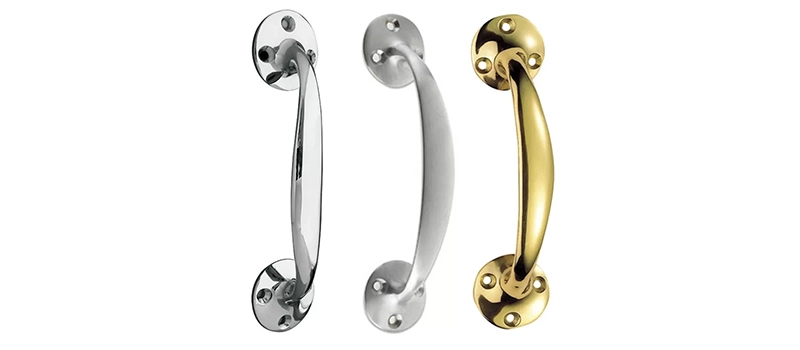

⚙️ Fixtures and Hardware

• Door handles, curtain rails, and light fixtures
• Provides a stainless steel look at a lower cost
• Corrosion-resistant in humid environments (e.g., bathrooms)

⚙️ Furniture Accents and Display Frames

• Used on chairs, signage, and showroom displays
• Offers a durable finish that resists scratches and tarnish

📌 Black chrome or satin chrome finishes on aluminum frames are growing trends in minimalist and industrial design.

### 🔹 Industrial Equipment and Castings

In manufacturing, chrome plating aluminum castings enhances longevity, friction resistance, and wear protection.

⚙️ Mold and Tool Components

• Hard chrome plating reduces abrasion in repetitive operations
• Improves tool life and dimensional stability

⚙️ Aerospace and Marine Hardware

• Provides a corrosion-resistant finish for brackets, housings, and flanges
• Lightweight aluminum with hard chrome is used in fuel systems and control components

⚙️ Cast Aluminum Structures

• Used in robotics, conveyors, and packaging equipment
• Smooth surface aids in easy cleaning and chemical resistance

### 🔹 Black Chrome Plating on Aluminum

This niche finish is increasingly popular for aesthetic and low-reflectivity applications.

• Used in luxury car parts, camera equipment, and military-grade components
• Offers a sleek, dark tone without sacrificing corrosion resistance
• Often applied over nickel or stainless-like underlayers

Whether for high-performance vehicles, decorative fixtures, or industrial castings, chrome plating aluminum offers the flexibility to meet engineering demands and design expectations alike.

5. Cost of Chrome Plating Aluminum

When considering chrome plating aluminum, one of the most important questions is: How much does it cost? The answer depends on a range of factors, from the complexity of the part to the type of chrome plating applied. Whether you’re working with a single decorative piece or mass-producing industrial components, understanding the cost drivers can help you plan effectively and avoid budget surprises.

### 🔹 What Factors Affect Chrome Plating Cost?

Chrome plating aluminum is generally more technically demanding than plating steel or brass, which can increase costs. Here are the key factors:

⚙️ Pre-Treatment Complexity

Because aluminum requires extra surface preparation, including degreasing, etching, desmutting, zincating, and intermediate layers, the labor and chemical usage are higher. Cast aluminum, in particular, may need multiple cleaning cycles due to porosity.

⚙️ Part Geometry and Size

Larger parts (like aluminum wheels or housings) require more solution volume, current, and plating time. Intricate designs with deep grooves or sharp corners may need custom jigs or manual polishing, which adds labor cost.

⚙️ Type of Chrome Plating

• Flash chrome plating (thin, decorative) is more affordable
• Hard chrome plating (thick, wear-resistant) is more expensive due to longer deposition time and higher material consumption

⚙️ Quantity and Batch Size

Small orders or one-off parts typically cost more per unit than bulk production, due to setup and chemical prep costs.

⚙️ Base Material Quality

Not all aluminum is created equal. High-porosity cast aluminum often requires extra steps, such as sealing or leveling with copper, to create a uniform finish — increasing both time and cost.

### 🔹 Real-World Examples of Chrome Plating Costs

Below are rough price ranges to give you an idea of typical costs (actual pricing varies by region, volume, and spec):

Application	Estimated Cost (USD)
Chrome plating aluminum wheel (17″)	$150 – $300 per wheel
Valve cover chrome plating	$80 – $180 per unit
Small trim piece (decorative)	$25 – $75 per part
Cast aluminum mold base (industrial)	$200 – $600+ depending on size

📌 Note: Pricing may include pre-treatment, copper/nickel underlayers, and final chrome, but not shipping or tooling fees. Always request a detailed quote.

### 🔹 Cost Comparison with Other Finishes

How does chrome plating aluminum compare to alternative finishing methods?

Finishing Method	Cost	Durability	Appearance	Application Notes
Chrome Plating	$$$	★★★★★	Mirror/glossy	Best for wear + looks
Anodizing	$$	★★★★☆	Matte/Color	Good for corrosion, not high gloss
Powder Coating	$–$$	★★★☆☆	Textured/Color	Cheap, but lower mechanical strength
Electroless Nickel	$$$	★★★★☆	Matte/Metallic	Great for hardness, but lacks shine

📌 Chrome plating is often more expensive upfront but pays off in long-term performance and reduced maintenance costs.

### 🔹 How to Optimize Chrome Plating Budgets

If you want the benefits of chrome plating aluminum without overspending, here are some expert tips:

• Choose platers experienced in aluminum. This minimizes failed batches and rework costs.
• Design for plating efficiency. Avoid deep recesses or blind holes that complicate current flow.
• Select the right aluminum alloy. Some alloys plate better and require fewer prep steps.
• Ask for detailed quotes. Make sure pre-treatment, underlayers, and finish quality are all included.
• Order in batches. Larger orders reduce per-unit cost due to shared setup fees.

By understanding what drives the cost of chrome plating aluminum, you can make smarter sourcing decisions — balancing appearance, protection, and price to match your project’s goals.

Conclusion

Chrome plating aluminum offers a powerful combination of durability, corrosion resistance, and high-end aesthetics. When done properly—with the right preparation, underlayers, and process control—it transforms standard aluminum into a high-performance, long-lasting material. By understanding the process, benefits, applications, and costs, you’re better equipped to make informed decisions for your next project.
