Advantages and Disadvantages of Investment Casting

Last Update 28/08/2025

This article explores the advantages and disadvantages of investment casting, helping manufacturers evaluate if this precision casting method fits their project needs.

Table of Contents

Are you struggling to choose the right manufacturing process for complex, high-precision metal components? Wondering whether the advantages and disadvantages of investment casting make it a smart choice for your production? Or are you concerned that traditional casting methods can’t deliver the tolerances your project demands?

Investment casting—also known as the lost wax process—offers unmatched dimensional accuracy, surface quality, and design flexibility. But like every process, it has both pros and cons. In this article, I’ll give you a clear, expert-level breakdown of the advantages and disadvantages of investment casting, so you can decide whether it’s right for your parts, your budget, and your delivery schedule.

Stick with me as I break down the real advantages and disadvantages of investment casting—so you can decide with confidence whether it’s the right fit for your production.

Key Advantages of Investment Casting

Excellent Dimensional Accuracy

One of the biggest reasons our clients choose investment casting is its ability to deliver outstanding dimensional accuracy. The wax pattern, which is an exact replica of the final part, allows us to maintain tolerances as tight as ±0.05 mm. That level of precision means less finishing work and more reliable assemblies, especially in industries like aerospace, automotive, and energy.

  • Consistent part-to-part repeatability
  • Ideal for components that require tight fits
  • Reduces deviation and rework in downstream assembly

Precision like this also saves time. When the part is accurate straight out of the mold, we skip costly CNC corrections and shorten our delivery cycle.

Superior Surface Finish

Unlike sand casting, which produces a coarse finish that often requires grinding, investment casting delivers a smooth surface right out of the mold. Thanks to the fine-grain ceramic shell and clean burnout process, we consistently achieve Ra surface finishes between 1.6 and 6.3 µm.

  • Eliminates or reduces the need for polishing
  • Improves product appearance for visible components
  • Lowers friction in moving parts (important for hydraulic and mechanical systems)

A better surface finish also means fewer potential initiation points for cracks or corrosion, increasing product life.

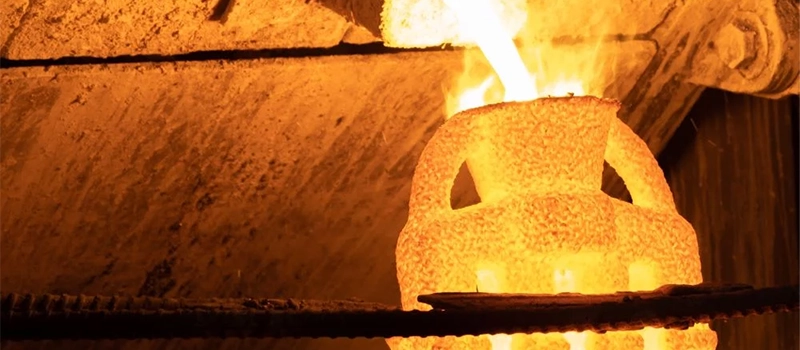

Dalian Zhongsheng Metal Products Key Advantages of Investment Casting

Complex Design Capabilities

One of the top advantages of investment casting is design freedom. We can produce shapes that are impossible or too expensive to machine or forge. This includes undercuts, thin walls, internal cavities, curved channels, and fine texturing.

  • No need to break designs into multiple parts
  • Enables functional optimization and weight reduction
  • Perfect for consolidating assemblies into a single casting

This flexibility is why industries like defense, medical, and oil & gas rely heavily on this method.

Minimal Machining Required

Because investment casting achieves such tight tolerances and clean finishes, we often don’t need to do much machining afterward. That translates to lower labor costs and faster delivery.

  • Reduces overall production time
  • Avoids CNC bottlenecks
  • Saves costs on cutting tools and tool wear

In many cases, only threads or precise holes require machining, which is a huge advantage in high-mix, low-volume production runs.

Broad Material Compatibility

Another major benefit of investment casting is the flexibility it offers in material selection. Our clients often need components made from stainless steel, tool steel, aluminum, brass, or even exotic alloys—and investment casting can handle them all.

  • Adapts to corrosion, temperature, and wear requirements
  • Suitable for both ferrous and non-ferrous alloys
  • Great for specialized industrial performance

This compatibility gives engineers freedom to prioritize function without being limited by process constraints.

Main Disadvantages of Investment Casting

Higher Initial and Tooling Costs

The upfront cost of investment casting is significantly higher than other methods like sand casting. This is mainly due to the tooling involved in creating wax injection molds and ceramic shells. For high-volume projects, this cost spreads out and becomes manageable. But for small-batch orders or prototyping, it can be hard to justify.

  • High tooling costs increase the breakeven quantity
  • Initial investment can be a barrier for startups or custom jobs
  • Tool maintenance adds long-term overhead

Buyers need to weigh whether their production scale justifies this initial investment, especially when cost sensitivity is high.

Time-Consuming Production

Unlike rapid processes like die casting or CNC machining, investment casting is a multi-step operation. It involves creating wax models, building ceramic shells in multiple layers, drying, dewaxing, firing, pouring, and finally finishing. Each step takes time, particularly the drying phases.

  • Average production cycles take several weeks
  • Unsuitable for urgent or fast-turnaround orders
  • Production delays can affect downstream scheduling

If your project operates under tight lead times or fluctuating demand, this process might slow things down more than expected.

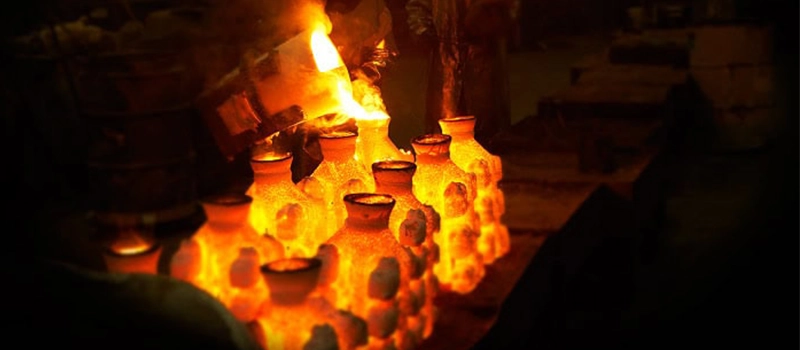

Dalian Zhongsheng Metal Products Main Disadvantages of Investment Casting

Size and Volume Limitations

Investment casting excels at small-to-medium-sized parts with complex geometries, but when it comes to large or oversized components, the method faces practical limits. The ceramic shell becomes fragile as the part size increases, and temperature control becomes more difficult.

  • Not ideal for parts exceeding 1 meter in length
  • Mold handling becomes riskier with size and weight
  • Shell cracking risk increases for bulky geometries

Likewise, the process isn’t always economical for ultra-high-volume runs due to the extended cycle times per piece.

Fragile Wax Patterns

Wax is at the heart of this process—but it’s also a vulnerability. Wax patterns can be deformed or damaged easily during handling, especially under high temperatures or poor storage conditions.

  • High risk of distortion or shrinkage during transit
  • Requires precise environmental controls in the workshop
  • Increases rejection rates if not handled properly

If your project involves shipping wax models or large quantities of pattern handling, this fragility may become a serious quality control issue.

Not Ideal for All Alloys or Applications

Although investment casting supports a wide range of materials, there are limitations when it comes to certain high-melting-point alloys or applications requiring extreme heat or mechanical strength. The ceramic shell can also react with specific metals if not properly formulated.

  • Specialty alloys may require expensive shell systems
  • Not suitable for parts subjected to extreme stress or heat
  • Certification for safety-critical applications can be complex

For aerospace, medical, or nuclear sectors, the process may require additional controls and inspections, increasing both cost and lead time.

Investment Casting vs Other Casting Methods

To help you better understand where investment casting fits, it’s useful to compare it with other common metal forming methods. Here’s a breakdown based on key factors we regularly evaluate for customers.

Dalian Zhongsheng Metal Products Investment Casting vs Other Casting Methods
Casting MethodDimensional AccuracySurface FinishTooling CostLead TimeComplexity HandlingBest Use Case
Investment CastHighExcellent (Ra 1.6–6.3µm)HighLong (weeks)Excellent for fine detailComplex, precision parts
Sand CastingLow-MediumPoor (Ra >12.5µm)LowShort (days)Basic shapes onlyLarge, simple, low-cost components
Die CastingMedium-HighGood (Ra 3.2–6.3µm)Very HighVery ShortModerate detailHigh-volume aluminum or zinc parts
ForgingVery HighGoodMedium-HighMediumLimited to simple shapesStrong mechanical parts under stress

As you can see, investment casting stands out in precision and surface quality, making it ideal when detail, tolerances, and appearance matter most. But if you’re prioritizing cost or turnaround time, alternatives like sand or die casting might be a better match.

Where Investment Casting Works Best

After decades of helping clients across industries, we’ve seen exactly where investment casting brings the most value. Its strengths in detail, tolerance, and complexity make it the best choice in several key application areas.

Aerospace and Aviation Components

Investment casting is highly regarded in the aerospace sector, where complex geometries and precision are mission-critical. From turbine blades to housings and brackets, the process delivers reliable parts with tight tolerances and minimal finishing.

  • Lightweight designs with internal passageways
  • Heat-resistant alloys for high-performance engines
  • Strict quality control with repeatable results

Medical and Surgical Devices

When it comes to medical parts, investment casting offers the detail and material control necessary for biocompatible implants, prosthetics, and surgical tools.

  • Excellent for stainless steel, cobalt-chrome, and titanium parts
  • Allows for organic, patient-specific shapes
  • High cleanliness and polishability for hygienic applications

Automotive and Performance Engineering

For automotive suppliers and performance applications, investment casting provides structural components that require strength, lightweighting, and complex form.

  • Used in turbocharger housings, exhaust manifolds, control arms
  • Enables weight savings and custom airflow paths
  • Works well for both mass-market and motorsport applications

Energy, Oil & Gas, and Petrochemical

Pump components, valve bodies, and impellers used in extreme environments benefit from the reliability and material options of investment casting.

  • Corrosion-resistant alloys for chemical exposure
  • Strong surface integrity under high pressure
  • Cast-in features reduce assembly time

Tooling, Defense, and Specialty Equipment

Many niche and mission-critical industries rely on the precision and durability that investment casting provides.

  • Firearm components, military-grade hardware
  • Mold inserts for plastic injection tooling
  • Custom mechanical interfaces with high durability

In short, if your product needs complexity, consistency, and durability—investment casting is likely the right tool for the job.
